Technology

Inside the decision

See more.
Separate precisely.

From the first scan to the final separation, sensing and processing work together. Explore the technology behind the MARK range.

Scroll across to explore the diagram. An illustrative chute-sorting sequence. Material presentation and fitted hardware vary by machine.

Vision

Trichromatic RGB sensing

The supplied T20 Square and COMMANDOR Square brochures describe 5,400 × 3 RGB sensing. Illumination, image acquisition and camera settings bring visible material differences into view.

Explore colour sensing →

Recognition

Process the visible details

COMMANDOR Square describes analysis of colour, shape and brightness, with study-data classification. RIGG specializes in size and hole recognition.

Explore image processing →

Separation

Turn a decision into action

Classification and timed air-jet ejection separate the selected material. Chute and belt platforms present different materials for inspection.

Find your material solution →

The cutaway explains a general optical-sorting architecture. Confirm the sensor, processing hardware and recognition features fitted to your chosen configuration with MARK.

Sensing. Processing. Engineering.

The hardware behind the concepts.

A closer look at sensing, programmable processing and mechanical design. The sensor photograph and processor illustration explain the concepts; the engineering photograph comes from MARK.

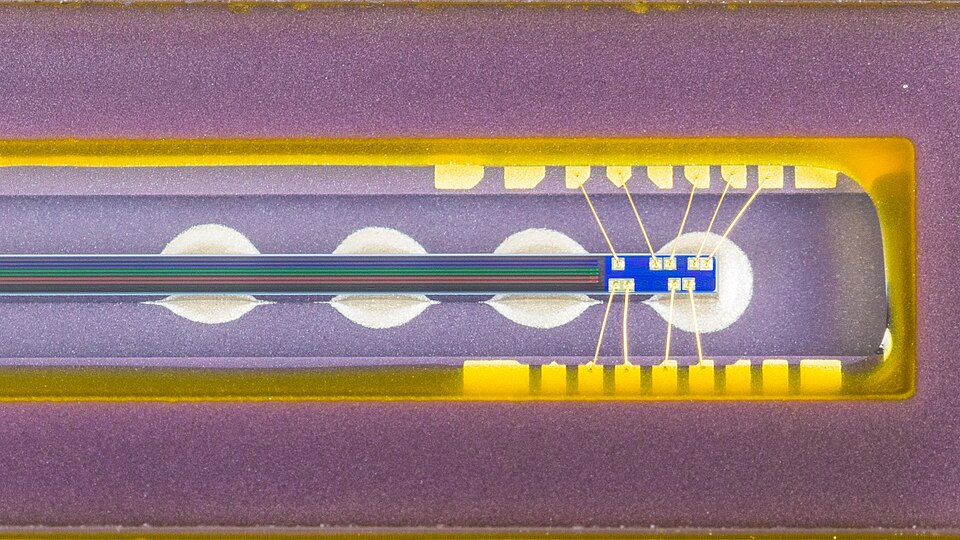

Close-up photograph of the Sony ILX561K linear CCD in an Epson scanner — RGB linear CCD sensor
A colour linear CCD converts incoming light into electrical signals. Red, green and blue channels provide the colour measurements that an imaging system can analyse.
Sony ILX561K linear CCD from an Epson Perfection V330 scanner.
Photo: Raimond Spekking · CC BY-SA 4.0

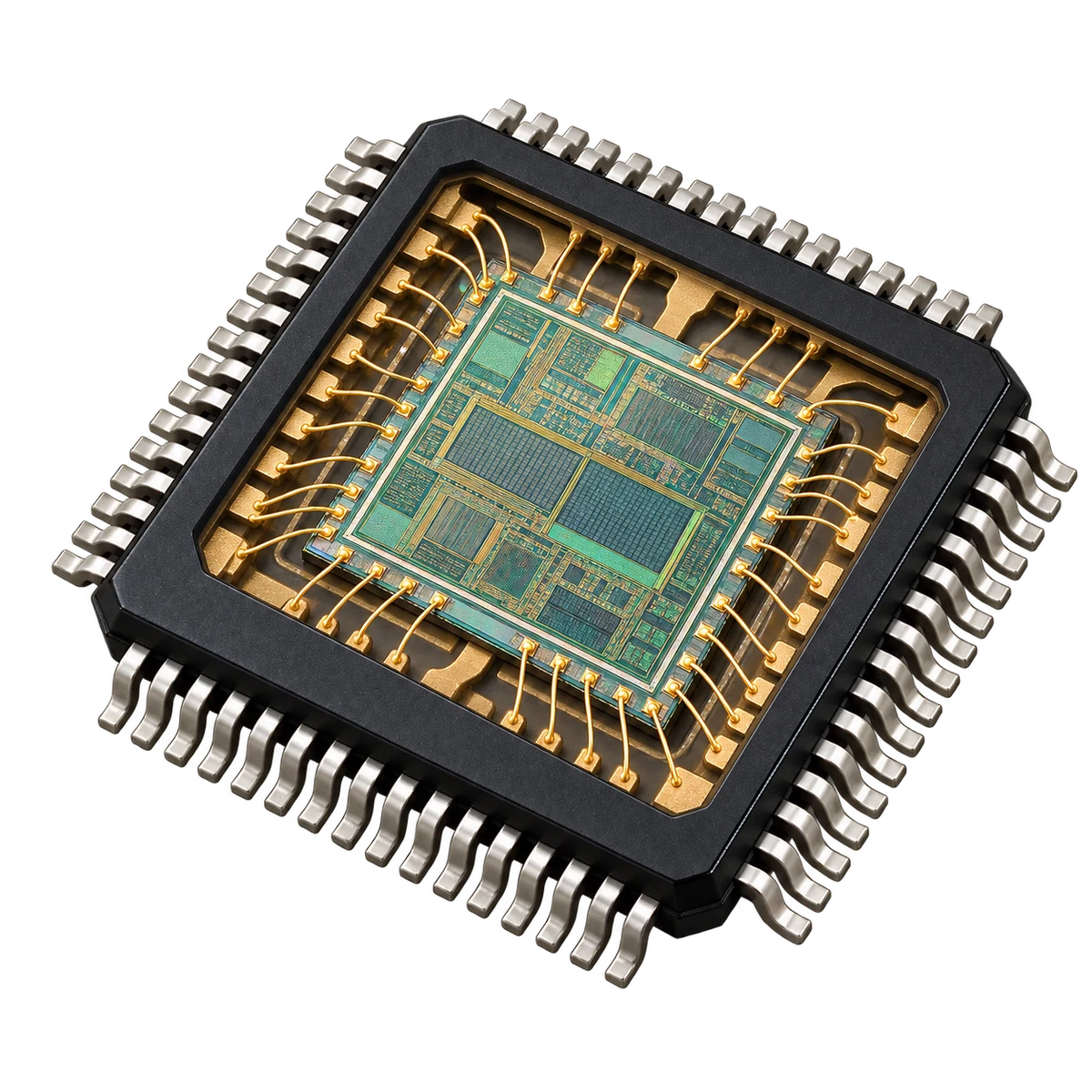

Generic programmable processor cutaway illustrating a silicon die, bond wires and internal interconnections — FPGA processing
A field-programmable gate array is a programmable processing device. Parallel logic can handle image data and classification tasks with consistent timing; the FPGA processes sensor signals rather than sensing light itself.
Illustrative processor cutaway; not a specific MARK component.

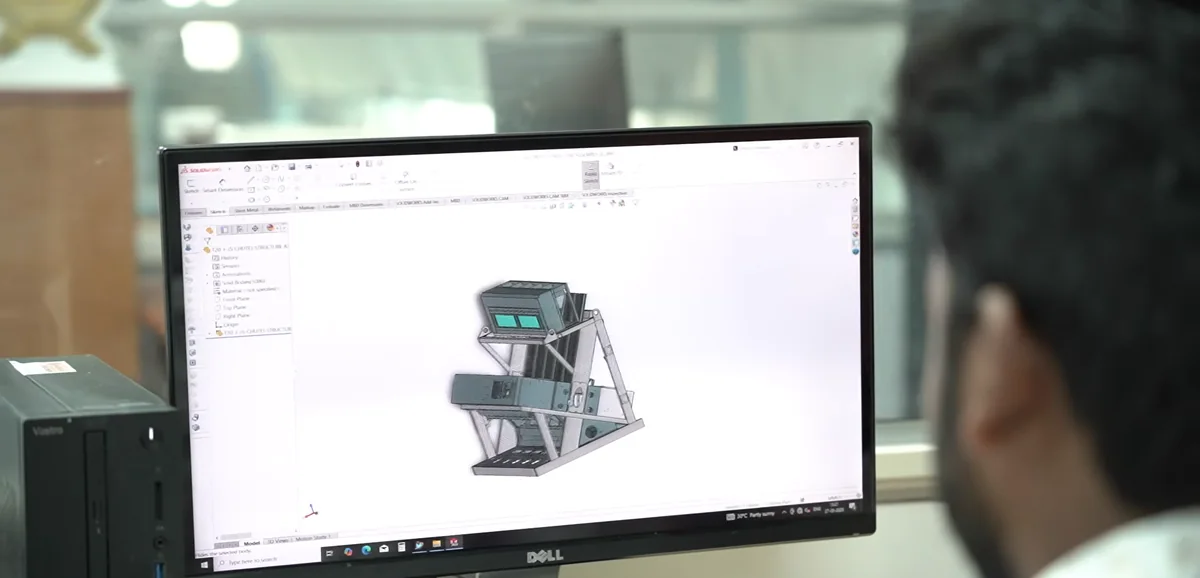

Mechanical design of a MARK sorting machine at the engineering workstation — Mechanical engineering
The frame, feed system, chutes and collection paths shape how material moves through the machine. Mechanical design brings these elements together so inspection, separation, access and maintenance fit the intended process.
Mechanical design at MARK.

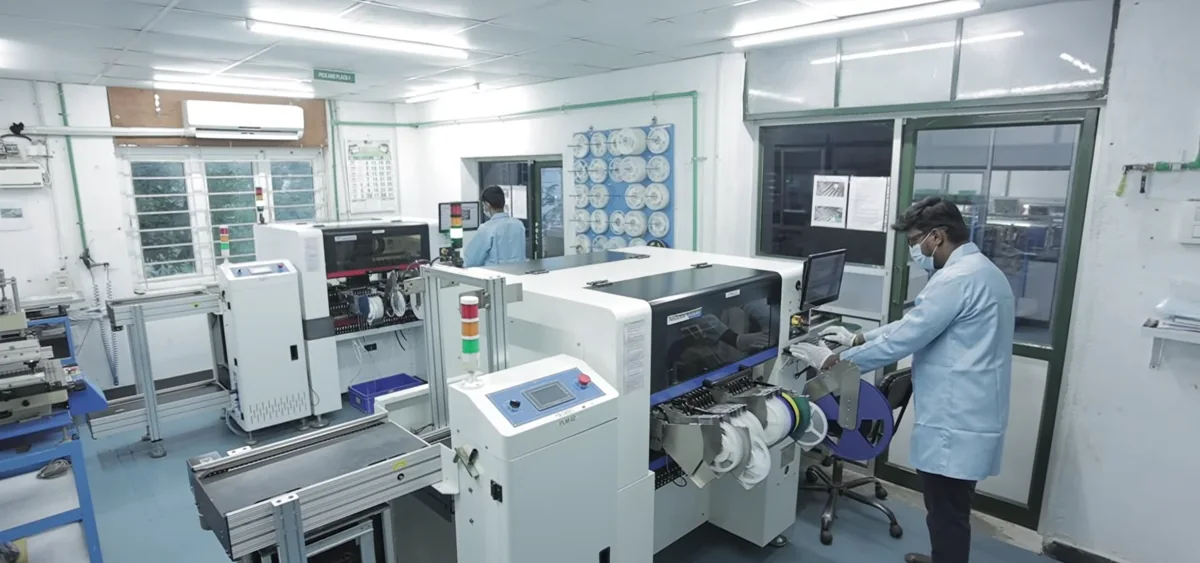

Electronics production and assembly at MARK

From design to the production floor.

See the engineering work, electronics production, fabrication and assembly behind the MARK range.

Inside our company →

How a sorting decision happens.

01
Present the material
An even product stream gives the inspection system a consistent view.
02
Illuminate & capture
Lighting and RGB imaging reveal visible differences in each product.
03
Process & classify
The machine compares colour or image features against its sorting settings.
04
Time the separation
A synchronized rejection signal directs unwanted material away from the accepted stream.

A general explanation of optical sorting. Hardware, recognition features and settings vary by model. Consult the official technical documents for your selected machine.

Explore RGB pixel processing, image processing and belt sorting technology in the MARK range.
